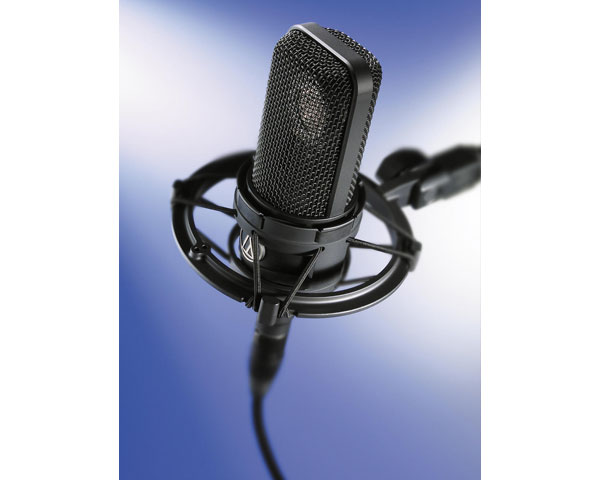

Audio Technica AT4040 Microfono a Condensatore Cardioide

Mod:[AT4040] Prod: Audio Technica
Non Disponibile
Prezzo: 338,00€ + IVA
E-mail Live Chat Stampa

The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics. A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040’s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.


SPECIFICATIONS

ELEMENT

Externally-polarized (DC bias) condenser

POLAR PATTERN

Cardioid

FREQUENCY RESPONSE

20-20,000 Hz

LOW FREQUENCY ROLL-OFF

80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY

-32 dB (25.1 mV) re 1V at 1 Pa

IMPEDANCE

100 ohms

MAXIMUM INPUT SOUND LEVEL

145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)

NOISE

12 dB SPL

DYNAMIC RANGE (typical)

133 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO

82 dB, 1 kHz at 1 Pa

PHANTOM POWER REQUIREMENTS

48V DC, 4.2 mA typical

SWITCHES

Flat, roll-off;
10 dB pad (nominal)

WEIGHT

12.7 oz (360 g)

DIMENSIONS

6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter

OUTPUT CONNECTOR

Integral 3-pin XLRM-type

ACCESSORIES FURNISHED

AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case

AUDIO-TECHNICA CASE STYLE

R1




  • Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics

  • Externally polarized (DC bias) true condenser design

  • Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility

  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

  • State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

  • Custom shock mount provides superior isolation

  • Switchable 80 Hz hi-pass filter and 10 dB pad
