SCHOEPS CMR Amplificatore microfonico per capsule MK, TA5F per Lectrosonics

Fuori Produzione

Prezzo: Contattaci per il prezzo/
Call for price!


Modello: [SCCMR]
Produttore: Schoeps

Contattaci:

Votazione 4.65/5 (3 Recensioni)

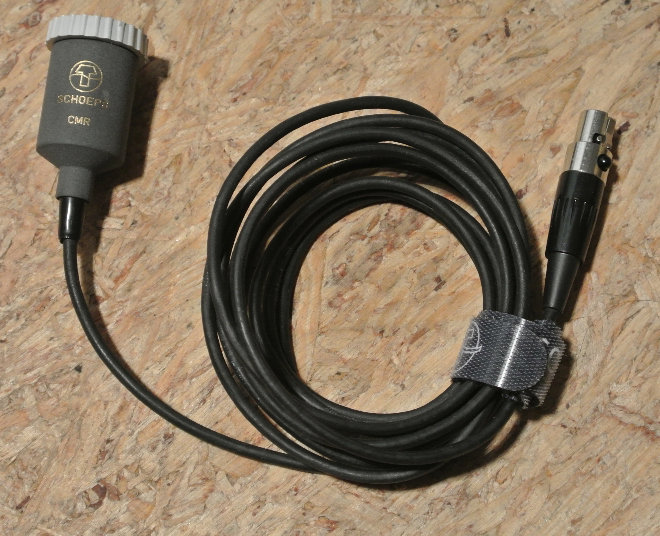

The gray CMR Microphone Amplifier for Colette Series Capsules from Schoeps allows you to use a Schoeps Colette microphone capsule with a bodypack transmitter that does not provide 12- or 48-volt phantom power.
It has a 6.5' long cable and features a TA5-F connector wired for Lectrosonics bodypack transmitters.
The CMR has low power consumption, using approximately 1/20 to 1/48 of what a typical phantom powered mic would use. Its cable is reinforced with Kevlar fibers, allowing it to remain flexible in low temperatures while preventing twisting.


Operating Voltage 4 to 10 V
Current Consumption ca. 1 mA
Sensitivity ca. 0.6 times the value as measured with a standard CMC microphone amplifier
Output Voltage 900 mV (-1 dBV), maximum with 20 Ω load impedance
560 mV (-5 dBV), maximum with 2 kΩ load impedance
Output Impedance 15 Ω @ 1 kHz
Cable Diameter: 0.1" (3 mm) Length: 6.5' (2 m)
Dimensions (Ø x L) 0.7 x 1.4" (20 mm x 38 mm)
Weight 0.8 oz (25 g)
