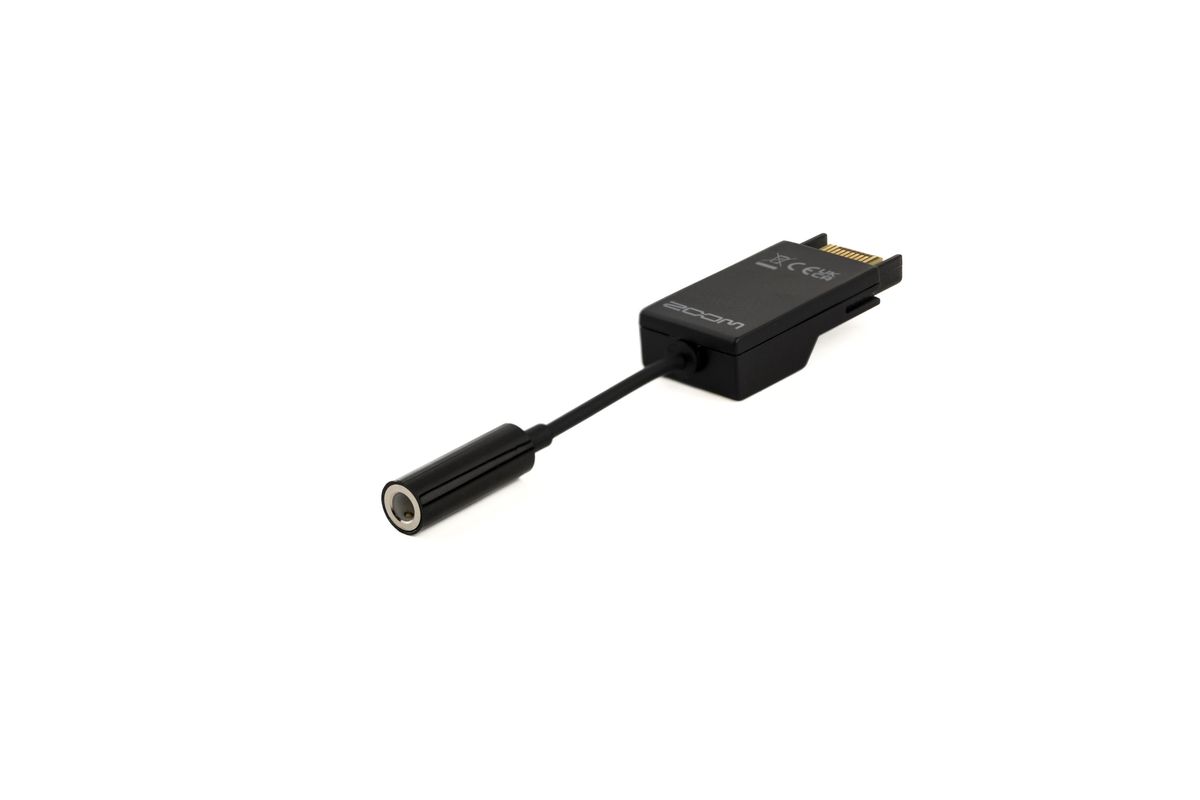

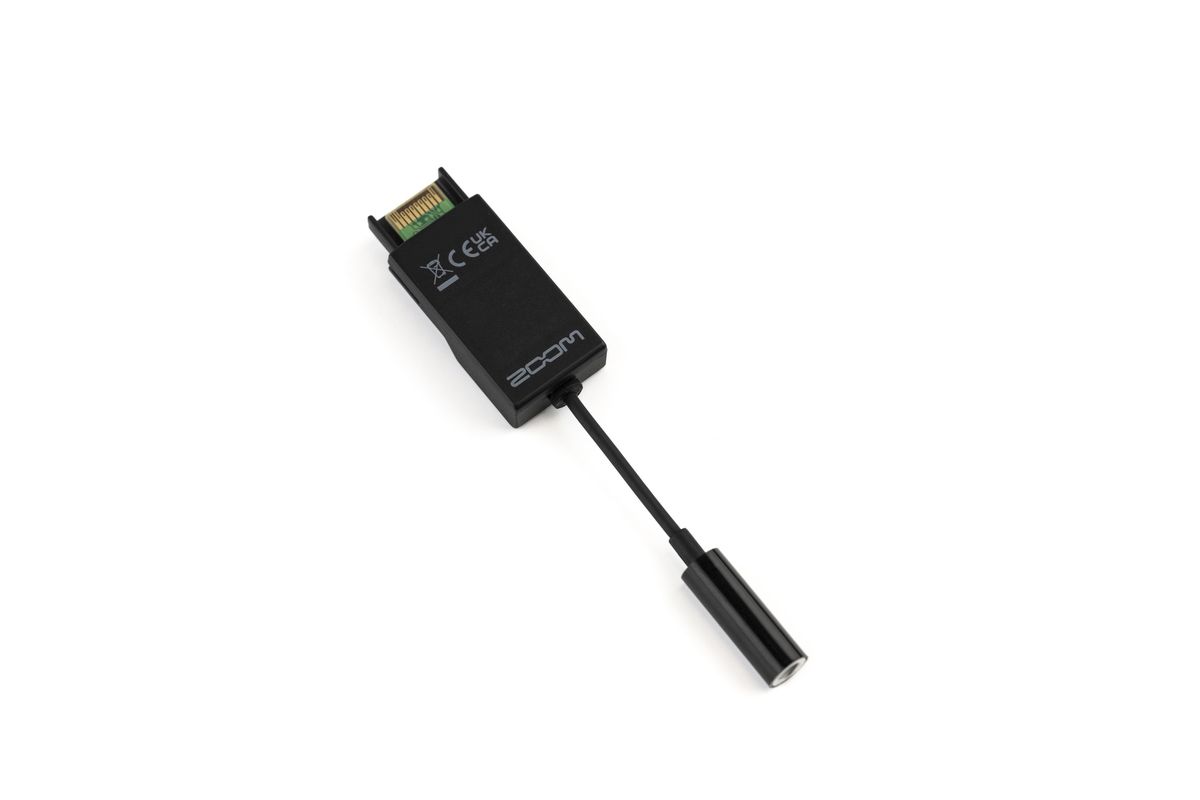

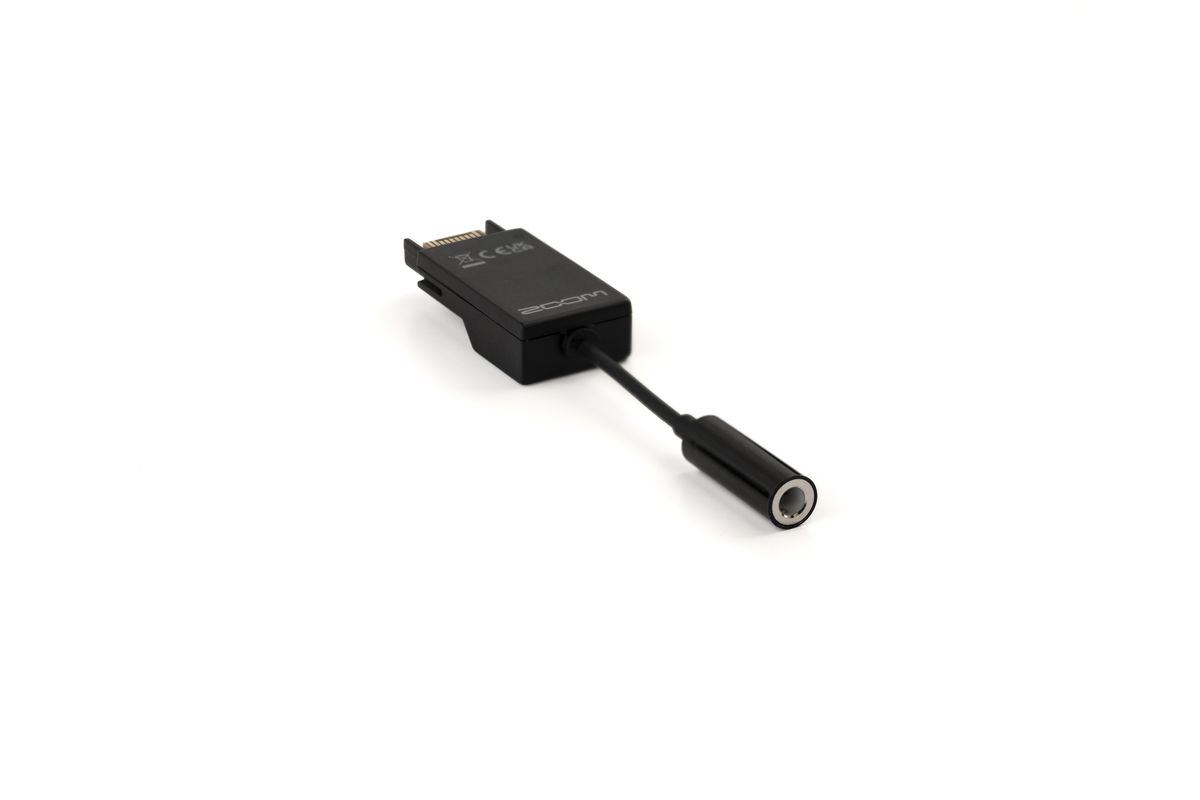

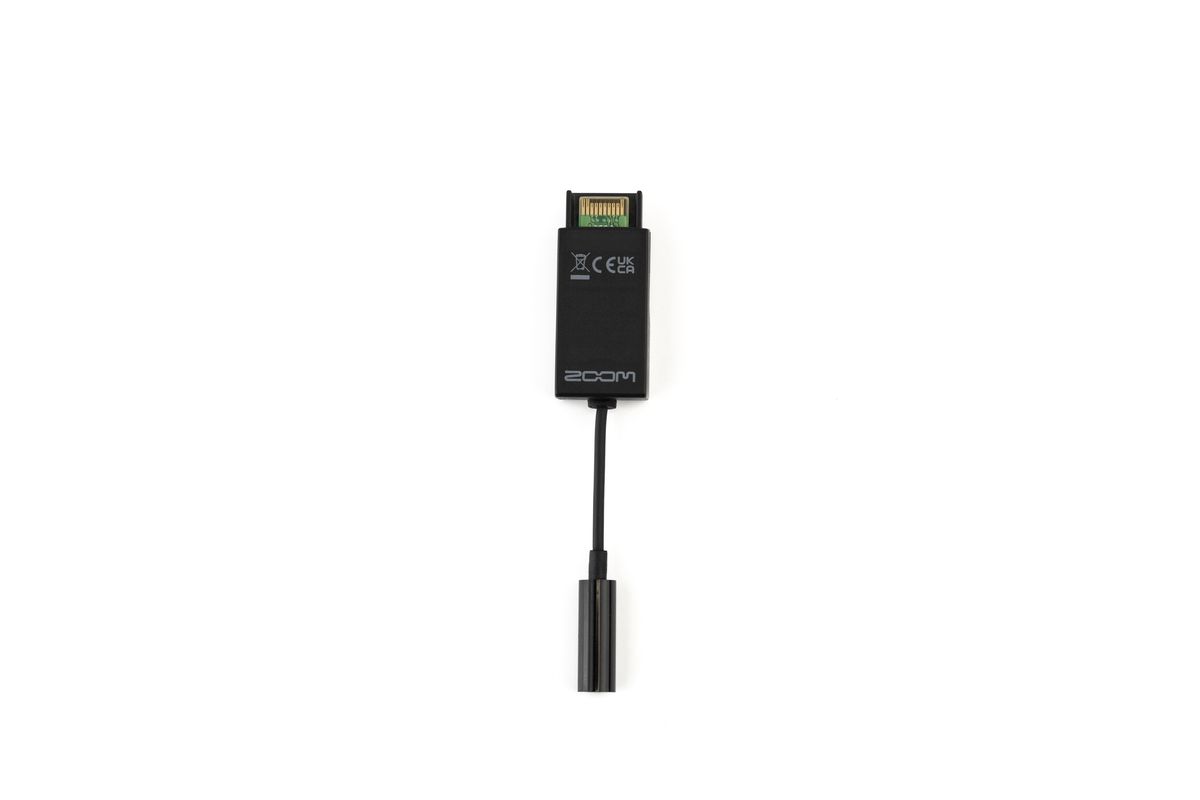

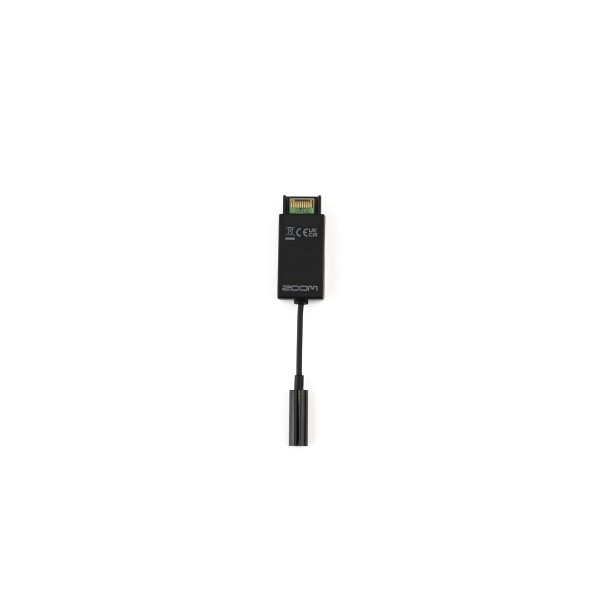

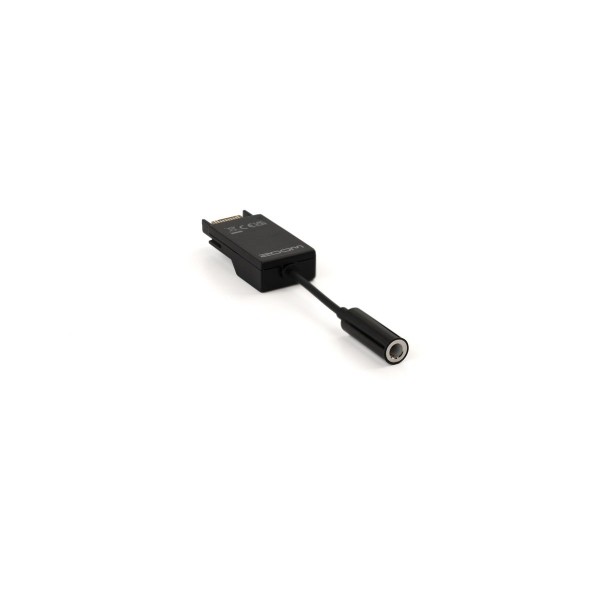

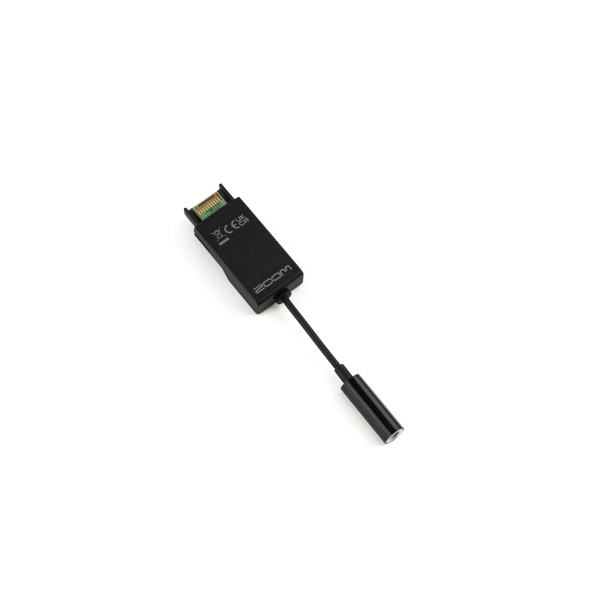

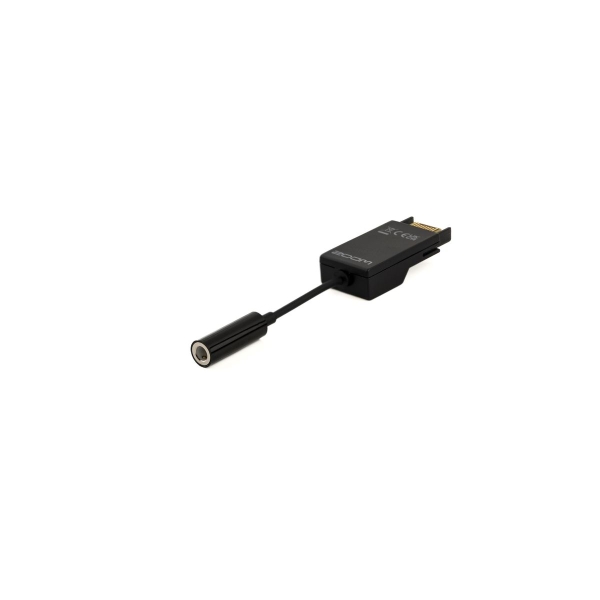

ZOOM TCA-1 Timecode Adapter for Zoom

•
•
•
•

The Zoom TCA-1 is a precision Timecode generator designed for ZOOM recorders. It ensures reliable audio-video synchronization with equipment such as cameras, timecode generators, smart slates, and video switchers via a 3.5 mm TRS mini-jack input/output connection.Its Temperature Compensated Crystal Oscillator (TCXO) ensures exceptional stability, with a drift of only 0.5 frames every 24 hours. The TCA-1 is compatible* with the H6studio, H5studio, H6essential, H4essential, H2essential, and F3 recorders.

*Needs latest firmware version

Key Features

• High-precision Timecode generator (±0.2 ppm)
• Seamless connection to your compatible ZOOM recorder via the dedicated remote control port
• Wide Compatibility: Works with H6studio, H5studio, H6essential, H4essential, H2essential, and F3
• Operating Modes: Off, Int Free Run, Int Rec Run, Time of Day, Ext, Ext Auto Rec
• Supported Frame Rates: 23.976 NDF, 24 NDF, 25 NDF, 29.97 NDF, 29.97 DF, 30 NDF, 30 DF
• Dimensions17mm (W) × 93.5mm (H) × 9.2mm (D)
• Weight5.9g
