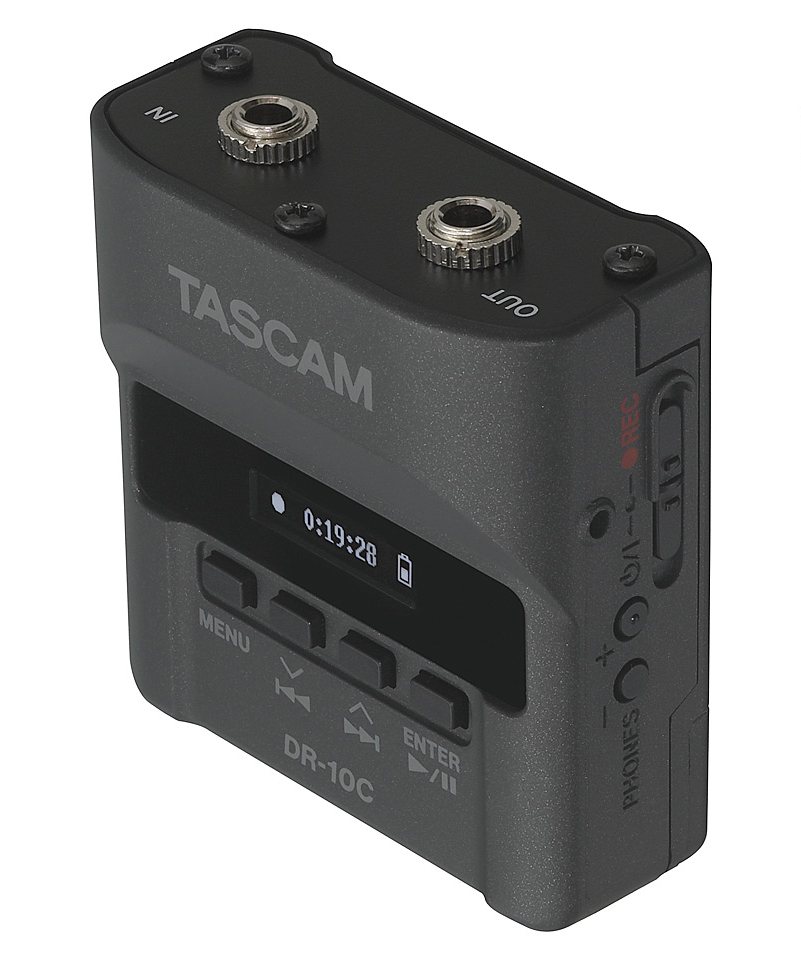

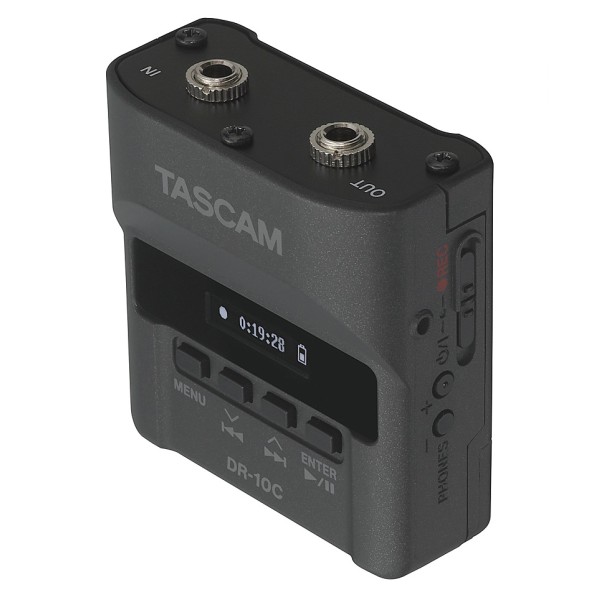

TASCAM DR-10 CS Lapel Microphone Recorders

•
•
•

The DR-10C-series recorders connect to your lavaliere microphone to create a compact recording system that fits on a belt pack. The DR-10CS is designed for use with Sennheiser microphones.

The DR-10C recorders have both inputs and outputs, so they can either be used standalone or with a wireless transmitter. When used with a transmitter, the unit acts as a backup to protect against wireless dropouts during recording. For lectures or worship services, the DR-10C can record the entire program before it gets to the front of house system. And for events like weddings and reality TV production, the DR-10C is a compact recording system for body mics.

The lightweight DR-10CS runs for hours on a single AAA battery. It records to standard microSD media. Recording features include auto-gain and a low-cut filter for simple setup. Its Dual Recording feature records a safety track of your audio at a lower level, so in case of distortion you have a non-clipped backup.

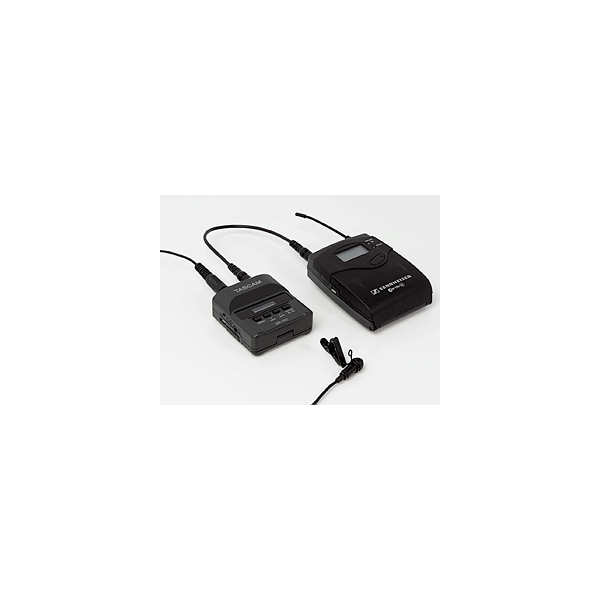

The DR-10CS recorder can be connected between the microphone and a transmitter of a wireless system from a supported manufacturer. Connect the mic to the recorder and use the included cable to connect it to the transmitter. This setup is perfect for use as a backup recorder – assuring the capture of audio should the signal sent through the wireless system be interrupted.

General
Recording media		microSD card (64 MB – 2 GB) microSDHC card (4–32 GB)
Recording and playback formats		Mono WAV files (BWF format), 48 kHz, 24 bit

Inputs and outputs

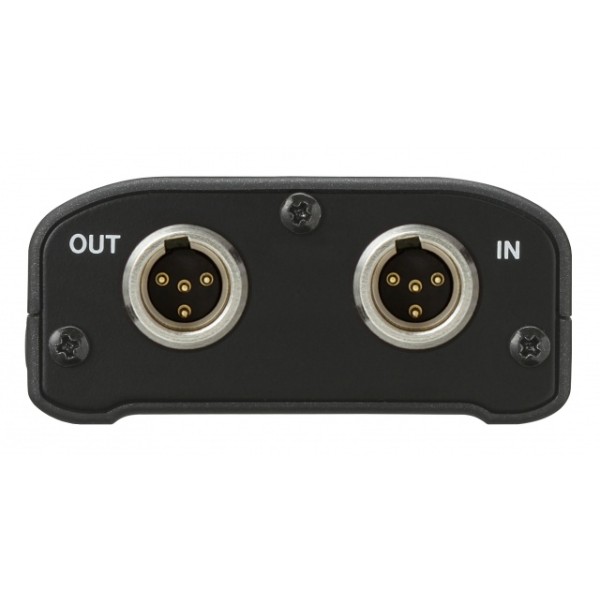

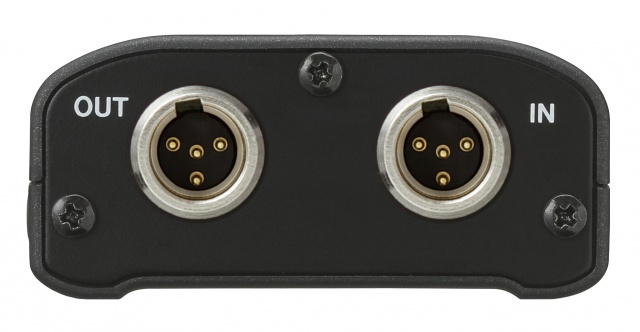

Analogue input (microphone)		DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male
Maximum input level		–12 dBV
Minimum input level		–53 dBV
Mic input gain		10 dB to 35 dB (according to MODEL SELECT setting)
Input impedance		33 k? or higher
Analogue output (passed to the transmitter)		DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male
Analogue output (Headphones jack)		3.5-mm mini stereo jack (dual mono audio output)

Audio performance, input to phones output
Frequency response		20 Hz – 22 kHz, +1/-3 dB
Distortion		0.05 % (1 kHz sine wave, maximum input level)
S/N ratio		88 dB or higher (PHONES level max., MIC GAIN set to LO)

Requirements for connected computers
Supported operating systems		Windows 7, Windows 8 (including 8.1) OS X Mavericks (10.9) OS X Mountain Lion (10.8)

Power supply and other specifications
Power supply		1 AAA battery (alkaline, NiMH or lithium) USB bus power from a computer
Power consumption		0.45 W (maximum)
Current consumption ?USB bus power)		0.25A (maximum)
Date and time data retention		Secondary lithium battery (built-in)
Dimensions (W × H × D)		52 x 56 x 25 mm (excluding protrusions)
Weight		63 g (with battery) 51 g (without battery)
Permissible operating temperature range		0-40 °C

Battery operation time
Conditions: WAV recording at 48 kHz/24 bit, continuous operation, JEITA recording times, in hours: minutes
Alkaline battery (Evolta)
10:00		Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off
9:30		Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off
NiMH battery (Eneloop)
8:00		Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off
7:30		Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off
Lithium battery (Energizer Ultimate Lithium)
15:30		Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off
14:30		Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off

For more information, please visit this products webpage.
