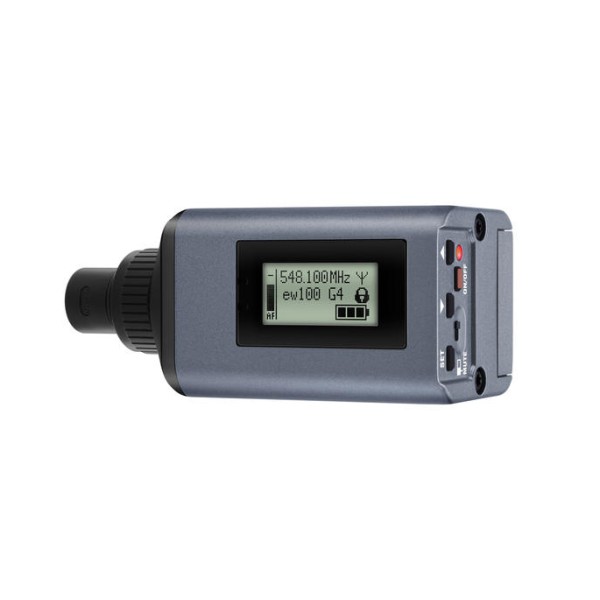

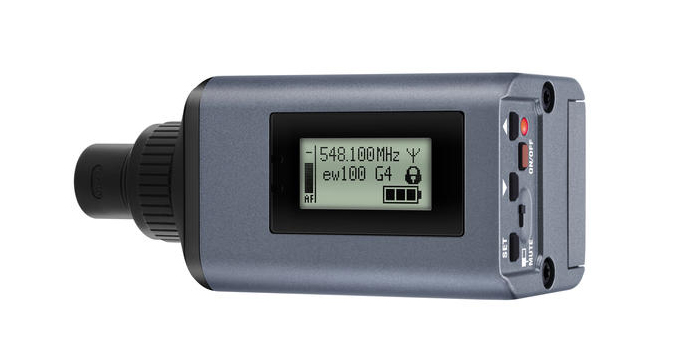

Sennheiser SKP 100 G4 Plug-on Transmitter, for dynamic microphone, no Phantom
Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.
Key Features:
- Powerful plug-on transmitter, no phantom power
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
DELIVERY INCLUDES:
- SKP 100 G4 plug-on transmitter
- 2 AA batteries
- quick guide
- safety guide
- manufacturer declaration sheet
FREQUENCY BAND:
A : 516 - 558 MHz
A1 : 470 - 516 MHz
G : 566 - 608 MHz
B : 626 - 668 MHz
| RF characteristics |
|
| Modulation |
Wideband FM |
| Transmission frequencies |
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
|
| Switching bandwidth |
up to 42 MHz |
| Nominal/peak deviation |
±24 kHz / ±48 kHz |
| Frequency stability |
≤ ±15 ppm |
| RF output power at 50 Ω |
Max. 30 mW |
| Pilot tone squelch |
Can be switched off |
| AF characteristics |
|
| Compander system |
Sennheiser HDX |
| AF frequency response |
80 – 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) |
≥ 110 dBA |
| Total harmonic distortion(THD) |
≤ 0.9 % |
| Max. microphone/line input voltage |
3 V eff |
| Microphone/line input impedance |
68 kΩ, unbalanced |
| Input capacitance |
Switchable |
| Setting range for input sensitivity |
48 dB, adjustable in 6 dB steps |
| Overall device |
|
| Temperature range |
-10 °C to +55 °C |
| Power supply |
2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage |
3 V battery / 2.4 V rechargeable battery |
| Current consumption |
at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 µA |
| Operating time |
Typically 8 h |
| Dimensions |
Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) |
approx. 195 g |
For more information, please visit this products
webpage.
