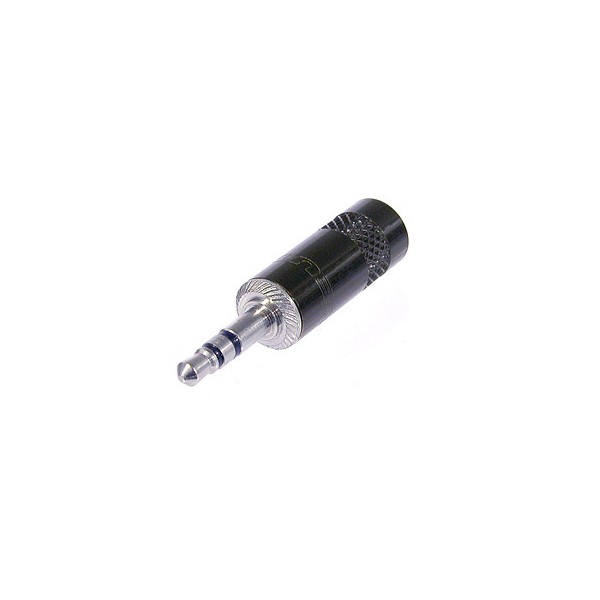

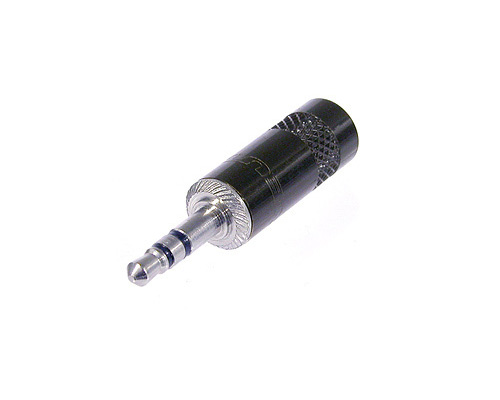

REAN NYS 231B 3.5 mm plug, 3-pole, black metal handle

NYS 231B 3.5 mm plug, 3-pole, black metal handle

TECHNICAL DATA

Electrical
Rated Current: Depends on mating connector
Contact Resistance: Depends on mating connector
Insulation Resistance: > 1 G Ohm
Dielectric strength: 500 dc

Mechanical
Life Cycles: 5000
Cable OD: 4 mm (NYS231L: 6 mm)
Solderability: IEC68-2-20
Operating Temperature: -25° C to +70° C

Material
Housing/Handle: Brass Ni/Au/black plated or Zinc Diecast
Insulation: Thermoplastic
Contacts: Brass Ni/Au plated
Strain Relief: CRIMP type SnCe plated
