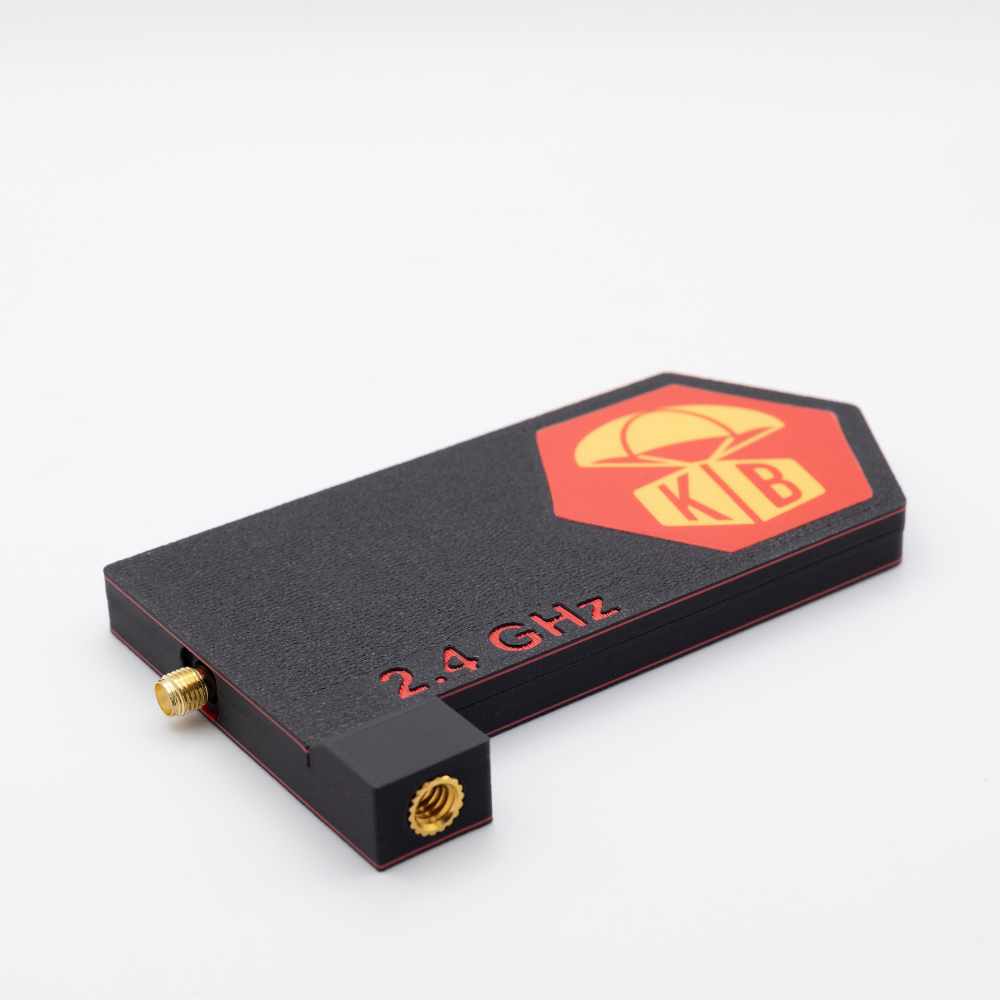

KIT BRAVO KIT-Y 2.4Ghz Directional Antenna

•
•

Kit Bravo 2.4 GHz Directional Antenna – 10 dBi Gain
This professional directional antenna is engineered to maximize range and signal stability within the 2.4 GHz band. With a high 10 dBi gain, it is the perfect tool for point-to-point and multipoint applications, ensuring a robust connection for remote control systems, digital audio, and wireless video monitoring.

• High Gain Performance: 10 dBi gain significantly extends the operating range compared to standard omnidirectional antennas.
• Professional Versatility: Fully compatible with industry-standard protocols like Zaxcom Zaxnet, Sound Devices NextLink, and Wisycom Bluetooth.
• Ultra-Slim Design: At just 13 mm thick and weighing only 68 g, it is ideal for audio bags, sound carts, or camera-mounted rigs.
• Standard Mounting: Features a 1/4-inch thread for quick integration with magic arms, stands, or photo/video mounts.

Recommended Applications

• Audio Systems: Zaxcom Zaxnet, Sound Devices NextLink, Wisycom MRK-16, Roger Phonak.
• Wireless Networks: Wireless LAN (802.11b/g/n), Public Hotspots, Wi-Fi.
• Advanced Tech: RFID, Wireless Video Systems, and long-range Bluetooth devices.

Technical Specifications

• Antenna Gain: 10 dBi
• Power Handling: 10 W
• Connector: SMA 50 Ohm female
• Mounting Thread: 1/4 inch
• Dimensions: 128 mm (L) x 74 mm (W) x 13 mm (H)
• Weight: 68 g

For more information, please visit this products webpage.
