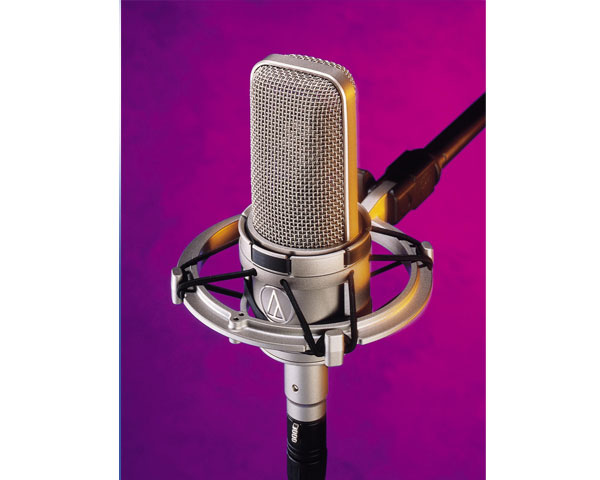

Audio Technica AT4047/SVSM Microfono cardioide a condensatore

The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047/SV studio condenser’s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

AT4047/SV. It’s another in a venerable line of studio artists’ dreams come true: the 40 Series, from Audio-Technica.



SPECIFICATIONS
ELEMENT	Externally-polarized (DC bias) condenser
POLAR PATTERN	Cardioid
FREQUENCY RESPONSE	20-18,000 Hz
LOW FREQUENCY ROLL-OFF	80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY	-35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE	250 ohms
MAXIMUM INPUT SOUND LEVEL	149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
NOISE	9 dB SPL
DYNAMIC RANGE (typical)	140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO	85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS	48V DC, 3.0 mA typical
SWITCHES	Flat, roll-off; 10 dB pad (nominal)
WEIGHT	14.5 oz (410 g)
DIMENSIONS	6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTOR	Integral 3-pin XLRM-type
ACCESSORIES FURNISHED	AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLE	R1

• Designed for critical studio, live sound and broadcast applications


• Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs


• Exceptionally low self-noise, wide dynamic range and high SPL capability


• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone


• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity


• Vintage silver-matte finish on microphone and shock mount


• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections


• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards


• Switchable 80 Hz hi-pass filter and 10 dB pad


• Custom shock mount provides superior isolation
