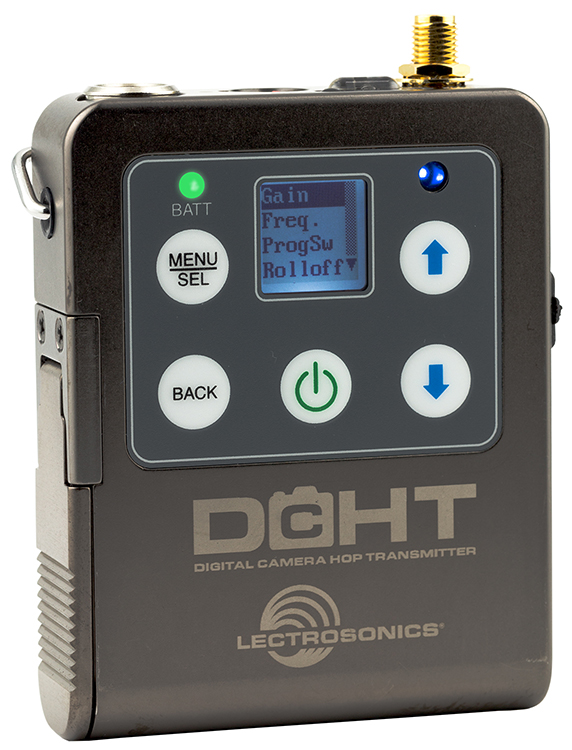

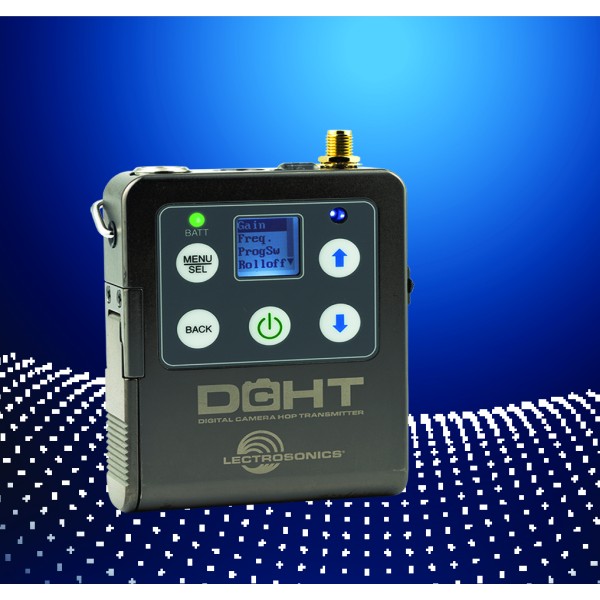

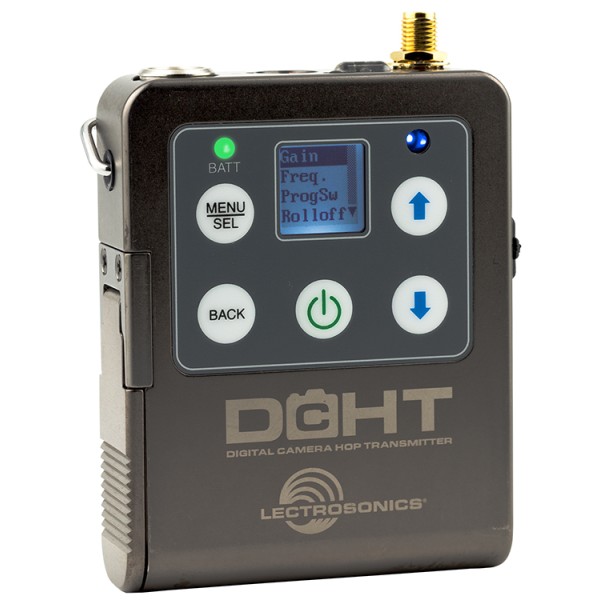

The Lectrosonics DCHT/E01 portable digital stereo transmitter is designed for use in film and TV production as both a wireless audio link from a bag or cart system to cameras and as a portable IFB transmitter paired with the Duet digital wireless M2R receiver packs. The DCHT accepts two channels of mic or line level analog signals or an AES digital signal from a mixer and transmits to the receiver or receivers in a purely digital format. The digital architecture of the new DCHT is a third-generation design with specially developed, high-efficiency circuitry for extended operating time on two AA batteries.

The DCHT can tune across the available UHG TV band from 470.00 to 607.950 MHz in 100 kHz or 25 kHz steps, offering more than 6000 frequencies. The RF output can be set to 10, 25 or 50 mW, thus providing flexibility in terms of operating range for the intended application. The digital architecture allows for AES256-CTR encryption for applications where content security is a concern.
  • Tunes across entire UHF frequency range
  • 256-bit encryption - AES 256-CTR
  • Selectable RF power at 10, 25 and 50 mW
  • AES and analog mic and line level inputs
  • USB port for firmware updates
  • Wide range input gain adjustment
  • Compatible with Duet M2R receiver
  • DSP-controlled input limiter
  • Two AA battery power
  • Solid machined aluminum housing
  • Optional powering from external DC

Operating Frequencies:    470.100 - 614.375 MHz
Frequency Selection Steps:    25 kHz
RF Power Output:    Selectable; 10, 25 or 50mW
Frequency Stability:    ± 0.002%
Spurious Radiation:    Compliant ETSI EN 300 422-1 v2.1.2
Digital Modulation:    8PSK
Equivalent Input Noise:    -128dBV
Input Level    Mic: Nominal 2 mV to 300 mV, before limiting Greater than 1V maximum, with limiting
Line: +24dBu before limiting
Input Impedance:    Mic: 300 or 4.5 kΩ; selectable
Line: greater than 100 kΩ
Input Limiter:    Dual envelope type; 30dB range
Gain Control Range:    51 dB in 1dB steps; digital control
Modulation Indicators:    Bicolor LED indicates modulation of -20 and 0dB referenced to full modulation
LCD bar graph
Compatibility Modes:    DCH (Digital Camera Hop)
Duet (IEM)
Frequency Response:    20 Hz -14.5 kHz ±1dB
Controls:    Top panel toggle switch; programmable as power, mute or none (off) function
Side panel membrane switches with LCD interface for power on/off and all setup and configuration controls

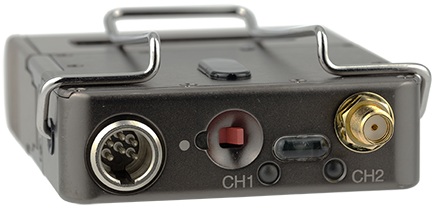

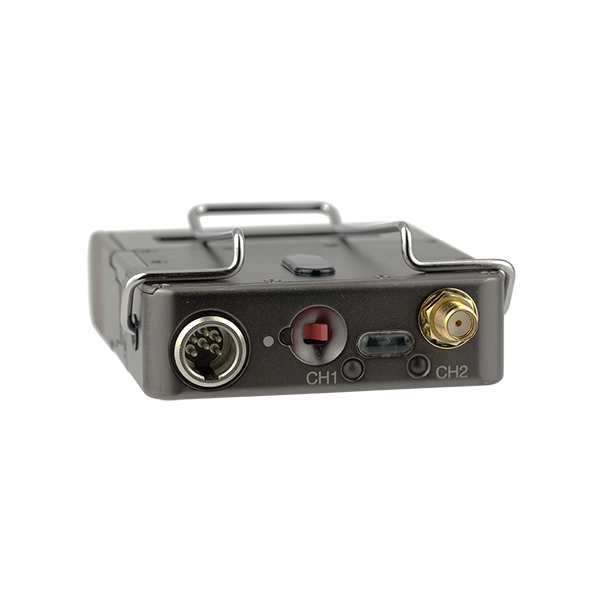

Audio Input Jack:    Switchcraft 6-pin locking (TA6F)
Antenna:    Galvanized steel, flexible wire, SMA connector
Battery:    Two AA Duracell Quantum recommended
Battery Life:    5 hours; Duracell Quantum alkaline
Weight:    163 grams; w/ belt clip and lithium AA batteries
181 grams; w/ belt clip and Duracell Quantum AA batteries
Overall dimensions:    88 x 62 x 19 mm
Emission Designator:    200KG1E
