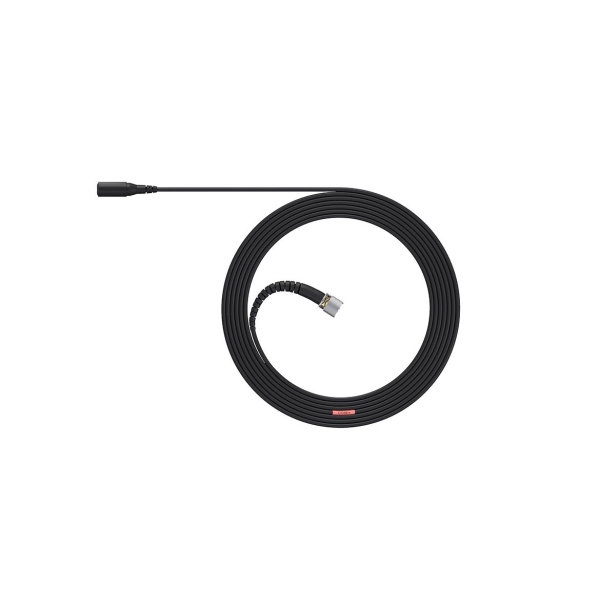

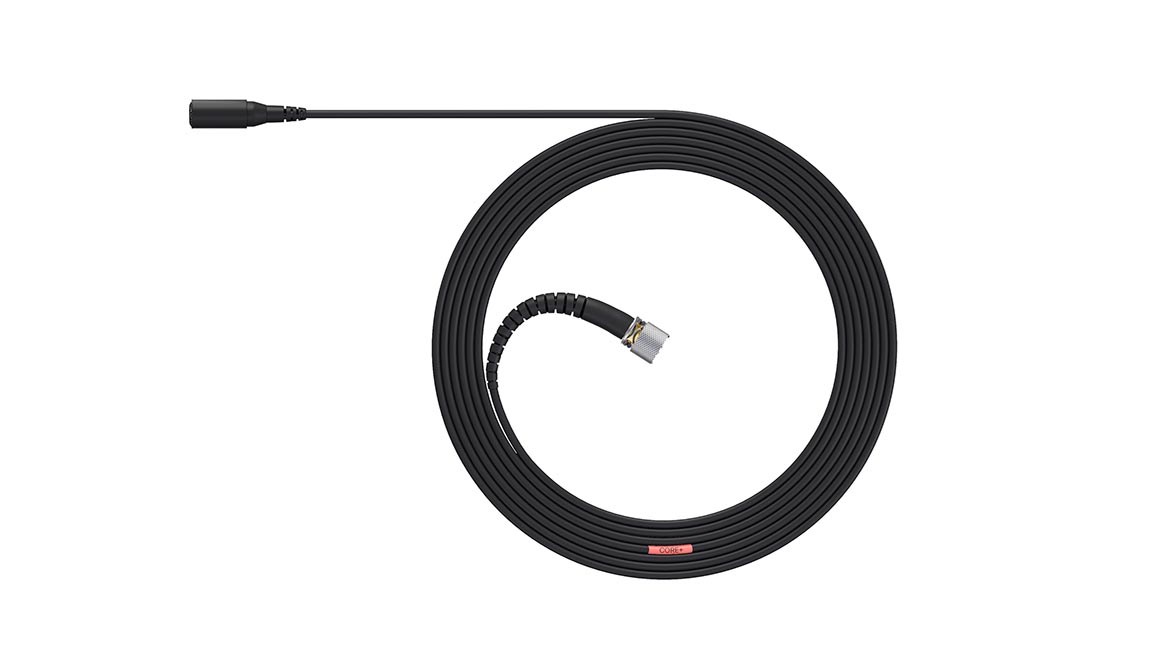

DPA 4071 Lavalier mic w. Presence Boost, MicroLock
Pre Order
Availability: 1-2 Weeks
Price: 535,00€ + VAT
Price (VAT included): 652,70€
The DPA 4071 CORE + is a lavalier microphone of exceptional quality.
It has a "soft" enhancement of 5 dB from 4KHz to 6KHz where the frequency band gives intelligibility e definition on the human voice and musical instruments.
Particularly suitable to use on film location and ENG/EFP.
New CORE version.
It has a "soft" enhancement of 5 dB from 4KHz to 6KHz where the frequency band gives intelligibility e definition on the human voice and musical instruments.
Particularly suitable to use on film location and ENG/EFP.
New CORE version.
Specifications
Capsule
- Type: Pre-polarized condenser
- Directionality: Omnidirectional
- Principle: Pressure transducer
Frequency Response
- 100 Hz – 15 kHz with typical 5 dB presence boost at 4–6 kHz
Sensitivity & Noise
- Sensitivity: 6 mV/Pa; 44 dB re. 1 V/Pa
- Equivalent noise: typ. 26 dB(A), max. 28 dB(A)
- Dynamic range: typ. 111 dB
- Signal-to-noise ratio: typ. 38 dB, max. 40 dB
Maximum Levels
- SPL RMS: 133 dB (standard), 134 dB (with DAD6001BC)
- SPL Peak: 136 dB (standard), 137 dB (with DAD6001BC)
- Clipping level: 144 dB SPL Peak
Electrical Data
- Output impedance: 30–40 ohm
- Supply voltage (wireless): 5–10 V via DPA adapter
- Supply voltage (XLR): P48 via DAD6001BC
- Current consumption: typ. 1.5 mA (mic), 3.5 mA with DAD6001BC
Connectivity & Compatibility
- Connector: MicroLock
- Max. range with DAD6001BC XLR adapter: up to 300 m (984 ft)
Environment
- Operating temperature: 4 °C to 45 °C (40 °F to 113 °F)
- Humidity: up to 90 %
General
- Cable length: 1.8 m
- Dimensions (W×D×H): 5.4×17×0.0 mm
- Weight (incl. cable & connector): approx. 7.5 g
