| Free field frequency response ±6 dB |
46 Hz … 24 kHz |
| Free field frequency response ±3 dB |
52 Hz … 21 kHz |
| Free field frequency linearity deviation between 100 Hz and 10 kHz |
± 1.0 dB |
| Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced |
±0.97; ±0.40; ±0.23 dB |
| Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) |
<20 dB(A) SPL |
| Sine wave output with a THD < 0.5 % at 1 m in half space |
95 dB SPL (>120 Hz) |
| Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) |
111.1 dB SPL |
| Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) |
105.1 dB SPL |
| Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) |
104.8 dB SPL |
| Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions |
107 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) |
97 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) |
104 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) |
88 / 93 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) |
89 / 94 dB(C) SPL |

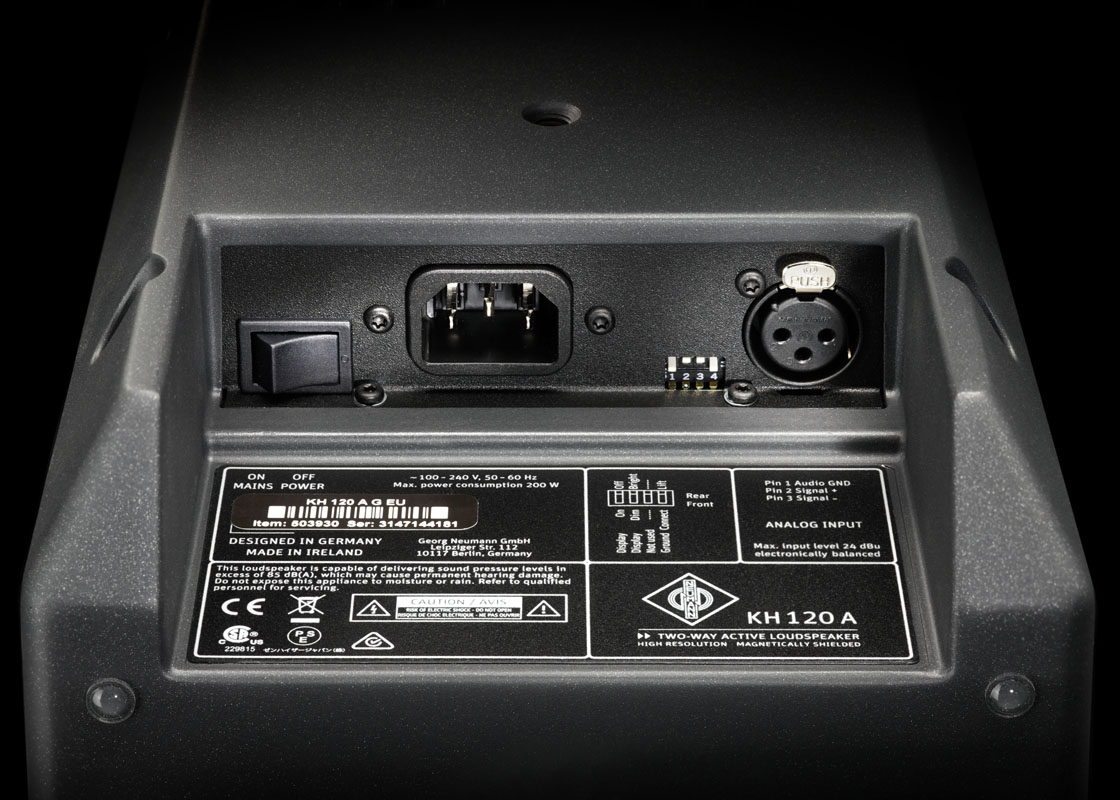

| Analog input(s) |
XLR: analog electronically balanced |
| Analog input impedance |
10k Ohms in position 94/108 dB SPL at 1 m; 20k Ohms in position 100/114 dB SPL at 1 m |
| Max. input level |
+24 dBu |
| Common mode rejection ratio (CMRR) |
>56 dB @ 15kHz |
| Input gain control (sensitivity) |
0 dB ... -15 dB |
| Output level control (output level in 1 m based on 0 dBu input level) |
94; 100; 108; 114 dB SPL |
| Controller design |
Analog; active |
| Crossover frequency |
2.0 kHz |
| Crossover slope |
24 dB/oct; 4th order |

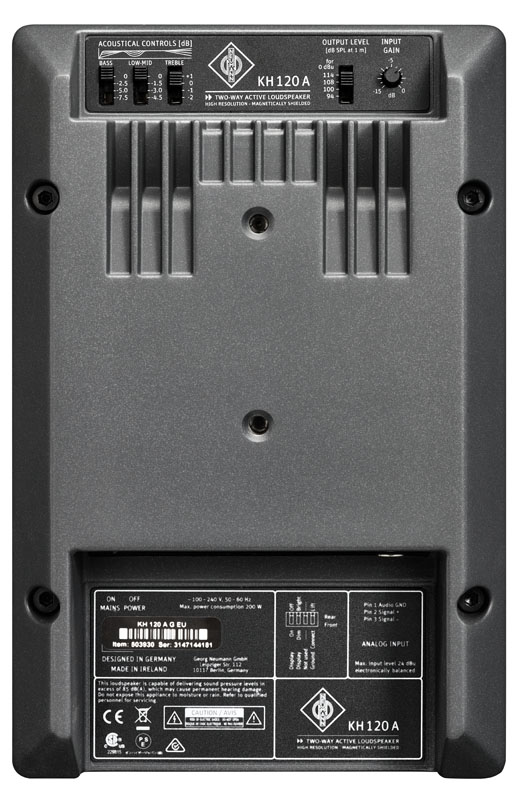

| Equalization: Bass |
0; -2.5; -5; -7.5 dB |
| Equalization: Low-Mid |
0; -1.5; -3; -4.5 dB |
| Equalization: Treble |
+1; 0; -1; -2 dB |
| Protection circuitry |
Independent thermo limiters for woofer, tweeter. Woofer soft clip and excursion limiters. Amplifier overheat. |
| Infrasonic filter: frequency; slope |
30 Hz; 6 dB/Oct. |
| Display: On; Normal Operation |
Neumann logo “White” |
| Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute |
Neumann logo “Red” |
| Display Brightness |
White:on/dimmed/off; Red:on/dimmed |
| Output power woofer amplifier (THD+N with limiter deactivated: 10%) |
80 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 10%) |
80 W |
| Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) |
50 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) |
50 W |
| Mains Power Supply: input voltage; frequency |
100-240V; 50/60 Hz |
| Power consumption (230 V / 100 V): Idle |
20 W |
| Power consumption (230 V / 100 V): Full output |
200 W |
| In-rush current (Peak) |
20 A |
| Cabinet material |
Aluminium |
| Cabinet surface finish; color (front / back) |
Painted; metallic anthracite (RAL 7021) |
| Operating conditions |
+10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing |
| Transport/storage conditions |
-25° C to +70° C (-13° F to 158° F); <90% RH, non-condensing |

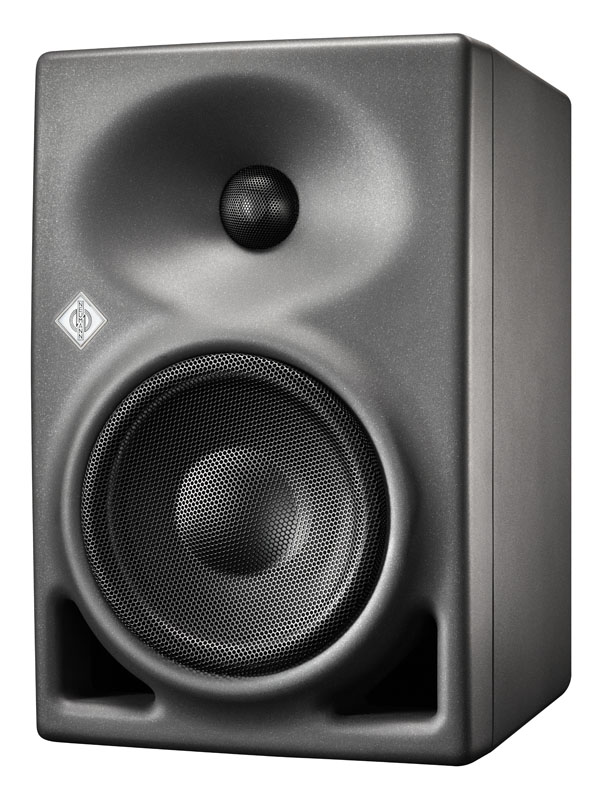

| Woofer |
130 mm (5.25") magnetically shielded with protecting black metal grille |
| Tweeter |
25 mm (1") with protecting black metal grille |
| Mounting points |
2 x M8 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”) |
| Product dimensions (height x width x depth) |
277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”) |
| External net volume |
9.7 liters |
| Product weight |
6.4 kg (14 lbs 2 oz) |
| Packed dimensions (height x width x depth), mm (inches) |
415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”) |
| Packed weight |
8.4 kg (18 lbs 8 oz) |
| Packed cube |
0.042 m³ |
