Completo di borsa, batterie ricaricabili, carica batterie
TW LP4 ST i is a compact, portable four-channel unit designed for electronic news gathering (ENG) quality sound mixing in a motion picture or television film.
SPECIFICATIONS
Ÿ Frequency response: 20 Hz – 20 kHz
± 2 dB
Ÿ Distortion: less than 0.2 % THD
Ÿ S/N ratio > 65 dB (EIN: –125 dBv)
Ÿ Maximum output level: +18 dBu
Ÿ Low-cut filter: 100 Hz, 14 dB / octave
Ÿ Internal batteries:8 pces AA cells or NP1
Ÿ Size: 255 × 165 × 65 mm 10 × 6.5 × 2.6 in
Ÿ Weight: 1,9 kg (4.2 lbs)
FRONT PANEL
Ÿ Battery / External power switch
Ÿ PWR LED: lights when power is on, flashes for low power
Ÿ Two headphone jacks
Ÿ Peak modulometers always show the level set, while meter LEDs, if limiter is on for the channel, indicate when gain reduction is occurring
Ÿ Slate microphone pushbutton
Ÿ Headphone monitoring selector
Ÿ Reference 1 kHz sine wave generator switch
Ÿ Pan switches: Right, Mono, Left, Stereo – channels 1 & 2 can be independently linked for stereo mode
Ÿ Limiter switch
Ÿ Direct / Tape switch for return 1 & 2
Ÿ Low-cut filter switches
Ÿ Master fader

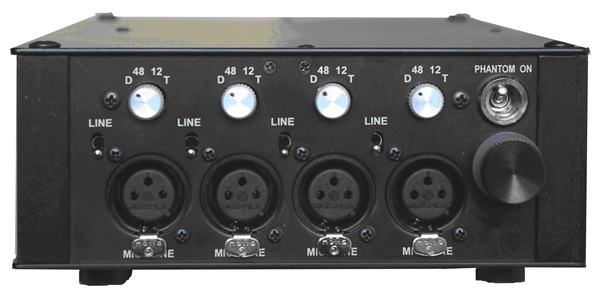

INPUT PANEL
Ÿ Four balanced XLR inputs
Ÿ Mic power selectors 48V, 12V, T
Ÿ Mic / Line level switches
Ÿ Phantom power on-off switch
Ÿ Optional NP1 battery holder switchable for internal or NP1

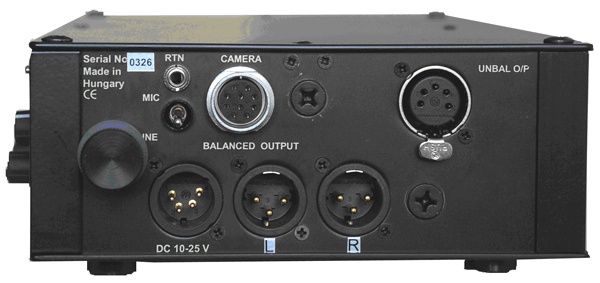

OUTPUT PANEL
Ÿ 3 pin XLR transformer balanced left and right outputs
Ÿ Hirose 10 pin connector for camera and return 1
Ÿ Mic / Line switches
Ÿ 3.5 Jack monitor in for tape return from camera
Ÿ 5 pin XLR unbalanced outputs and return 2
Ÿ 4 pin XLR connector for charger and external power
